Solar Panel Battery Charge Controls
Sol-Go offers a selected range of advanced solar battery charge controls, based on experience in the US and Europe, with marine, leisure and commercial vehicle users. The units Sol-Go has selected are sourced from reputable manufacturers, with well established brands that meet all required product safety certifications.
MPPT type (max power point tracker) charge controls can deliver 10-30% more power from the same panels, due to advanced battery charging algorithms and microprocessor control. This is especially useful in vehicles or boats where sunlight exposure can change quickly. With MPPT controls it’s possible to connect high voltage panels to lower voltage battery banks. The models offered include load control and various settings accessed either with an LCD display or Bluetooth communications for use with a mobile phone app.
PWM type (pulse width modulated) charge controls offer good value for small and budget installations. While they lack the ultimate battery charging efficiency compared to MPPT type controls, PWM controls benefit from lower prices. The Sol-Go selection includes basic controls with dual battery charging capability, premium types with LCD display, load control and also waterproof models for more challenging applications.
MPPT Battery Charge CONTROLS

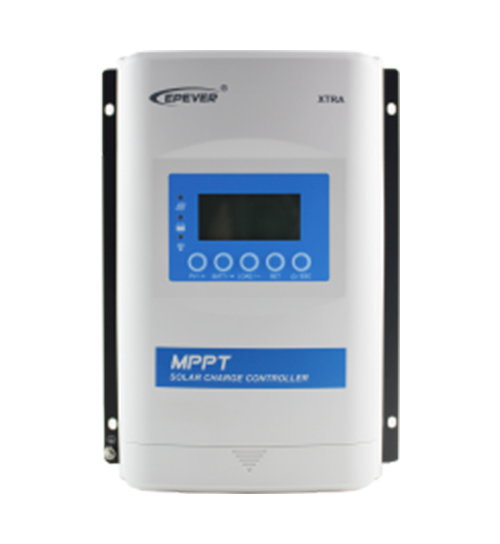

EPever MPPT Charge Control XTRA
EPever MPPT Charge Control XTRA With an LCD display, XTRA models also have a current limiting function, so you can connect 1.5 times the rated power to the controller. So a smaller controller can be used with more panels for better power in winter or low light without risk of overloading in the summer. The output will be limited to the max listed above.
XTRA controls can be connected to the Tracer Bluetooth Adapter and mobile phone App.
Part Number: 1564
EPever XTRA 20A 2210N
Part Number: 1577
EPever Bluetooth Adapter BLE-01
Part Number: 1144
Part Number 1850
Victron MPPT Charge Control SmartSolar
The range of SmartSolar controls maximise energy-harvest, to achieve full battery charge in the shortest possible time. The charge algorithm maintains battery health and extends battery life.
Provides remote control and system monitoring functions with built-in bluetooth pairing to a smartphone or other devices via VictronConnect.
If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use.
Note: 20A model is suitable for 12/24/48V systems.

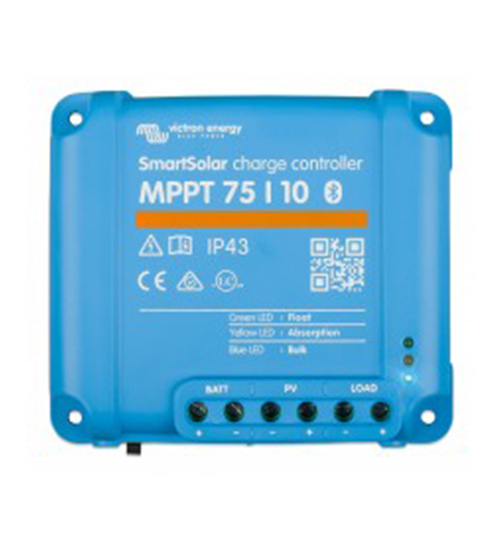

Victron SmartSolar 75-10
Part Number: 1850

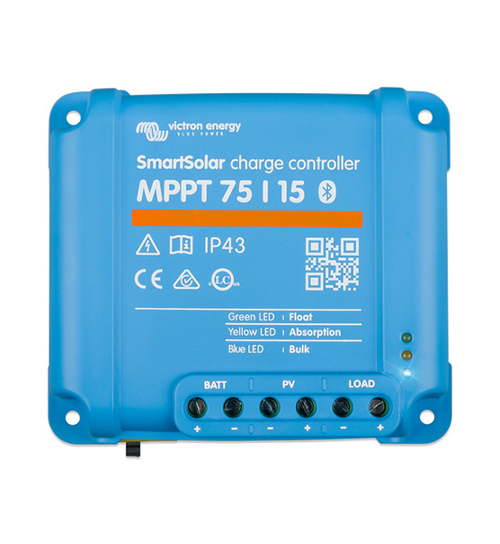

Victron SmartSolar 75-15
Part Number: 1556

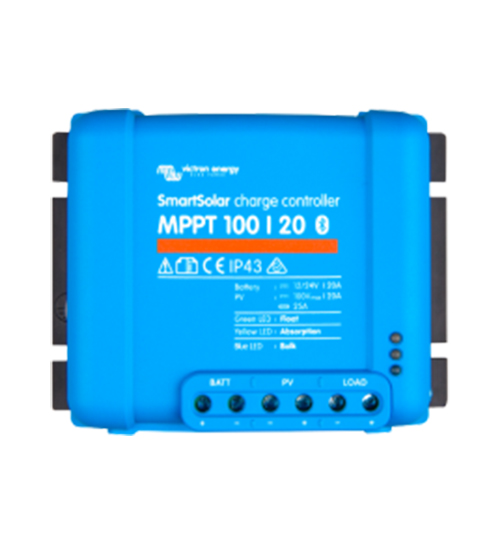

Victron SmartSolar 100-20
Part Number: 2229
Part Number 1556
Part Number 2229

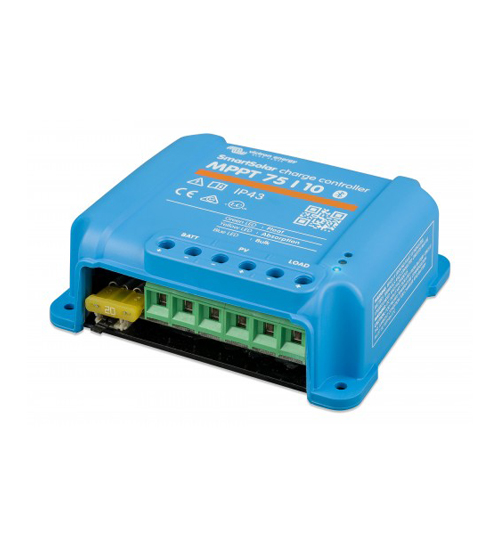

Connection Terminals

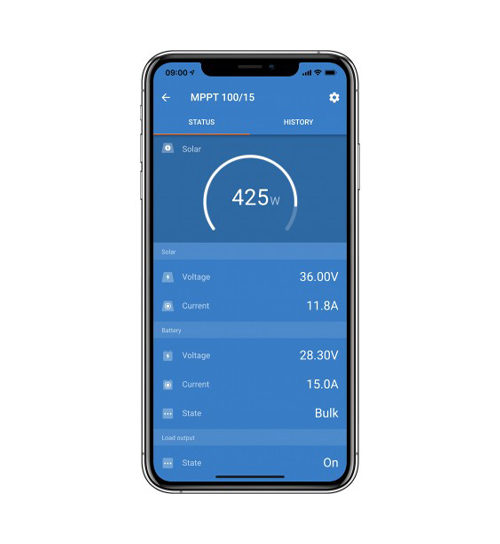

iPhone App
PWM Battery Charge CONTROLS
EPsolar Dual Battery PWM Charge Control
The 10A or 20A Duo charge controls are ideal for charging both starter and leisure batteries on boats and vehicles.
MOSFET electronic switches are used for better reliability than relays. Simple LEDs indicate state of charge. Protected from reverse polarity.
EPsolar Dual Battery 10A
Part Number: 1081
EPsolar Dual Battery 20A
Part Number: 881
EPever 20A PWM Charge Control VS-AU
The VS-AU controller is a common positive PWM charge controller with built in LCD display and dual USB charge ports. The multiple load control modes mean it can be widely used for switching lights and other devices. See manual for full details.
EPever VS-AU 20A
Part Number: 1110
Part Number 2294
EPever Waterproof PWM Charge Control LS-EPD
EPever waterproof controls are supplied with 150mm output cables and bare wire ends. These can be fitted with MC4 connectors or wired directly into a vehicle battery box. The single button allows access to settings, with LED indicators to show status.

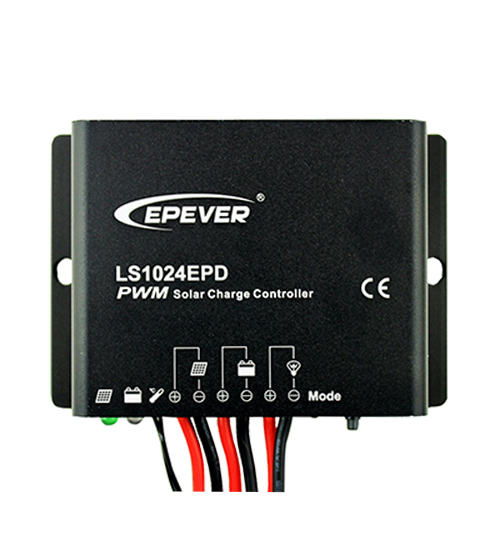

EPever Waterproof 10A
Part Number: 2294

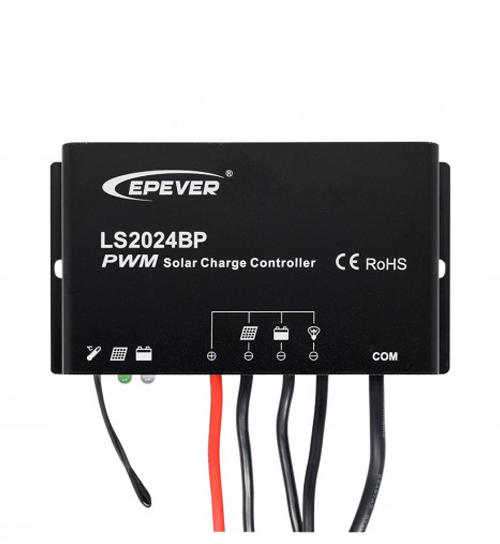

EPever Waterproof 20A
Part Number: 596
Part Number 596
MPPT Type Battery Charge Control Specifications
| Sol-Go Part No. | 1564 | 1577 | 1850 | 1556 | 2229 |
|---|---|---|---|---|---|
| Model | EPever XTRA 10A 1206N | EPever XTRA 20A 2210N | Victron SmartSolar 75-10 | Victron SmartSolar 75-15 | Victron SmartSolar 100-20 |
| Nominal system voltage | 12/24VDC Auto* | 12/24VDC Auto | 12/24/48V | ||
| Battery Type | Sealed / Gel / Flooded / Lithium* | Sealed / Gel / Flooded / Lithium | |||
| Battery input voltage range | 8～32V | Not specified | |||
| Rated charge current (Max**) | 10A | 20A | 10A (13A**) | 15A** | 20A** |
| Rated load current (Max***) | 10A | 20A | 15A | 20A / 20A / 1A*** | |
| Rated charge power (12V/24V/48V)**** | 130W / 260W | 260W / 520W | 145W / 290W | 220W / 440W | 290W / 580W / 1160W |
| Max. conversion efficiency | 97.90% | 98.30% | 98% | ||
| Max. PV open circuit voltage | 60V @ -25°C 46V @ 25°C | 75V | 100V | ||
| MPPT voltage range | Battery voltage +2V~36V | Not specified | |||
| Charge voltage equalisation | Sealed: 14.6V / Gel: No / Flooded: 14.8V, User-defined: 9-17V | Uses multi-stage adaptive algorithm. See manual section 3.8.1 for full details. | |||
| Charge voltage boost or absorption | Sealed: 14.4V / Gel: 14.2V / Flooded: 14.6V, User-defined: 9-17V | 14.4V / 28.8V (adjustable) | 14.4V / 28.8V / 57.6V (adj.) | ||
| Charge voltage float | Sealed / Gel / Flooded:13.8V, User-defined:9-17V | 13.8V / 27.6V (adjustable) | 13.8V / 27.6V / 55.2V (adj.) | ||
| Low Voltage Disconnect | Sealed / Gel / Flooded: 11.1V, User-defined: 9-17V | 11.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or Battery Life algorithm | |||
| Low Voltage Reconnect | Sealed / Gel / Flooded: 12.6V, User-defined: 9-17V | 13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm | |||
| Self-consumption | ≤14mA (12V) ≤15mA (24V) | 12V: 25mA 24V: 15mA | 25 / 15 / 10 mA*** | ||
| Temperature compensation*** | -3mV / ℃ / 2V (default) | -16 mV / °C resp. -32 mV / °C -64mV/ °C*** | |||
| Relative Humidity | ≤95%, Non-condensing | 100%, non-condensing | |||
| Enclosure | IP33 Rating | IP43 (electronic components), IP22 (connection area) | |||
| Communication interface | RS485 (RJ-45) | Built-in Bluetooth, VictronConnect app, VE.Direct | |||
| Protection | Reverse polarity, short circuit and over temperature - see manual | Battery reverse polarity (fuse), Output short circuit / Over temperature | |||
| Grounding / Earthing | Common negative | Suitable for positive or negative earth system | |||
| Terminals | 4mm2 | 6mm2 | |||
| Operating temperature range | -25℃ ～ +50℃ (LCD) | -30 to +60°C (full rated output up to 40°C) | |||
| Net weight | 0.57kg | 0.96kg | 0.35kg | 0.41kg | 0.435kg |
| Dimensions | 175×143×48mm | 217×158×57mm | 160x94.9x49.3mm | 108.5×75×25.6mm | |
* If using Lithium battery, customer should use “PCsoftware” to set the lithium battery parameters, Auto set is disabled.
** A PV array with a higher short circuit current may damage the controller in case of reverse polarity connection of the PV array.
*** Data for 12V, 24V or 48V respectively.
**** If more PV power is connected, the controller will limit input power.
PWM Type Battery Charge Control Specifications
| Sol-Go Part No. | 1081 | 881 | 1110 | 2294 | 596 |
|---|---|---|---|---|---|
| Model | EPsolar Dual Battery 10A | EPsolar Dual Battery 20A | EPever VS-AU 20A | EPever Waterproof 10A | EPever Waterproof 20A |
| Nominal system voltage | 12/24VDC Auto | ||||
| Rated charge current | 10A | 20A | 20A | 10A | 20A |
| Rated discharge current | Not Applicable | 20A (USB 2.4A total) | 10A | 20A | |
| Battery Type | Sealed / Gel / Flooded | Sealed | |||
| Equalize charging voltage | Sealed: 14.6V / Gel: No / Flooded: 14.8V | 14.8V(12V); 29.6V(24V) | |||
| Boost charging voltage | Sealed: 14.4V / Gel:14.2V / Flooded:14.6V | 14.4V(12V); 28.8V(24V) | |||
| Float charging voltage | Sealed / Gel / Flooded: 13.8V | 13.7V(12V); 27.4V(24V) | |||
| Low Voltage Disconnect | None | 11.1V | 11.2V(12V); 22.4V(24V) | ||
| Low Voltage Reconnect | None | 12.6V | 12.6V(12V); 2 5.2V(24V) | ||
| Maximum solar voltage | 30V (12V System) 55V (24V System) | 50V | |||
| Battery voltage range | 8～15V | 9～32V | 8～32V | ||
| Boost time | 120 minutes | Not Applicable | |||
| Self-consumption | 4mA at night, 10mA at charging | ≤9.2mA/12V; ≤11.7mA/24V | 12V: ≤4.58mA；24V:≤6.01mA | ||
| Communication interface | 8- PIN RJ-45 | Not Applicable | |||
| Temperature compensation | -5mV/℃/2V | -3mV/℃/2V | -5mA/℃/2V(25℃） | ||
| Enclosure | IP30 Rating | IP67 Rating | |||
| Terminals | 4mm2 | 10mm2 | Cable 4mm2 | Cable 6mm2 | |
| Operating temperature range | -35℃ ～ +55℃ | -25℃ ～ +55℃ | -35℃ ～ +50℃ | ||
| Net weight | 0.25kg | 0.35kg | 0.41kg | 0.435kg | |
| Dimensions | 155 x 76 x 40mm | 160x94.9x49.3mm | 108.5×75×25.6mm | ||
